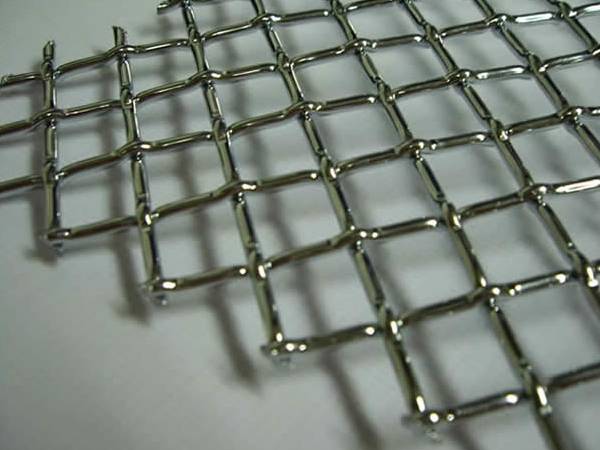

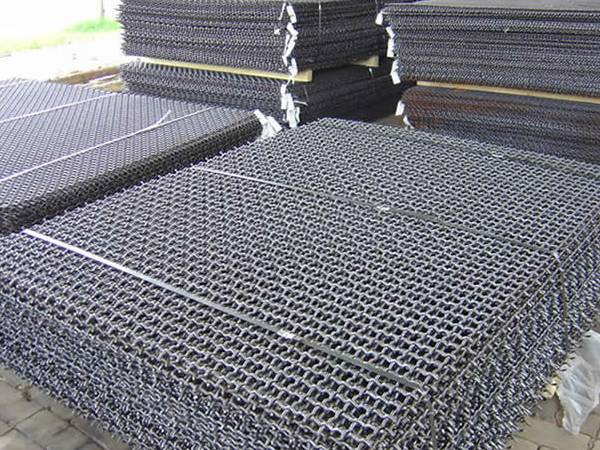

Crimped Wire Mesh

Products information: Crimped wire mesh is woven by a pre-bent into a wave-shaped metal wire. The metal wire be bended by mold, so make the wire in both directions relative to the correct position, thus ensuring the crimped wire mesh of mesh size consistency.

Feature and uses: Stability, consistency and smooth surface. Crimped wire mesh is used in screening in mine, coal factory, construction and other industries. Some galvanized crimped wire mesh and stainless steel crimped wire mesh are for roasting of flour food and meat.

Material: Black wire, white wire, plumbum wire, stainless steel wire.

Woven style: Two-way across wave bending, Locked crimping, Flat-topped crimping, Two way crimping, One-way separated wave crimping.

Flat-topped crimping

Locked crimping

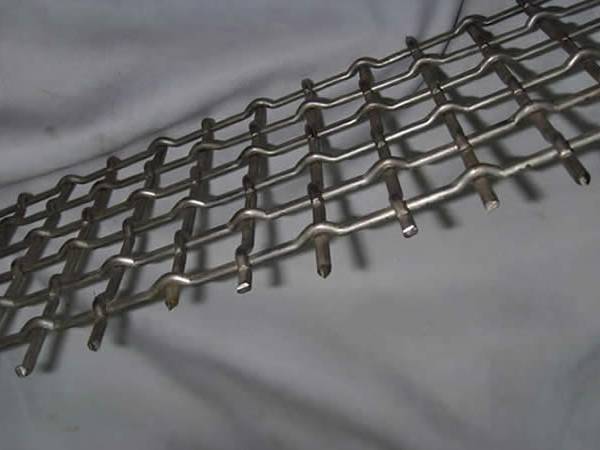

One-way separated wave crimping

Specification:

• Diameter 1.0mm × mesh opening 8mm or 10mm
• Diameter 1.5mm × mesh opening 12.5mm, 15mm or 20mm
• Diameter 3mm × mesh opening 15mm, 20mm, 30mm
• Length and width specifications: 1m × 25m 1m × 30m 1.2m × 25m 1.2m × 30m
